TISS9828
Engine Applications
● MWM G620 / TBG441B / TBG616 / TBG620 / TCG2020 / TCG2016
● GUASCOR FG180 / FGLD180 / FG240 / FGLD240 / FGLD360 / FGLD480 / FGLD560
● MAN E 3268 LE212 / E 3268 LE222 / E 3268 LE232 / E 3262 E302 / E 3262 LE 202 / E 3262 LE 212 / E 3262 LE 232 / E 3262 LE 242
● 2G AGENITOR 206/ 208/ 212/ 306/ 312
● Caterpillar G3500 (non B, C and E series) / G3600 series
● JENBACHER J612 / J616 / J620 (1995/9 - BMEP = 16 bar or less)
● CUMMINS Q19G / QSV81-V16 / QSV91-V18 / QSV 81 / QSV 91 / QSK 19G / QSK 38G / QSK 45G / QSK 50G / QSK 60G
● PERKINS 4000 Series
● LIEBHERR G96 SERIE
● SUPERIOR 1706G2 / 1712G1 /2400 G Series
● Wartsila W25SG / W28SG / W34SG / W20V / 34SG
● WAUKESHA AT Series: 8L-AT25GL / AT27GL
Target applications
● Industrial stationary engines
● Power generation/CHP
● Fast Power & Resilience
● Natural Gas
● Furnace Gas
● Landfill Gas
● Sewage Gas
● Biogas
DENSO：
GL3-1 / GL3-3 / GL3-5
FEDERAL MOGUL - CHAMPION:
RB75N, RB75PP, RB75WPC, RB75WPCC
BOSCH:
7308, 7307
GATEWAY:
1175112
ALTRONIC:
L1863B / L1863DP / L1863IP
STITT:
RL807LL
|

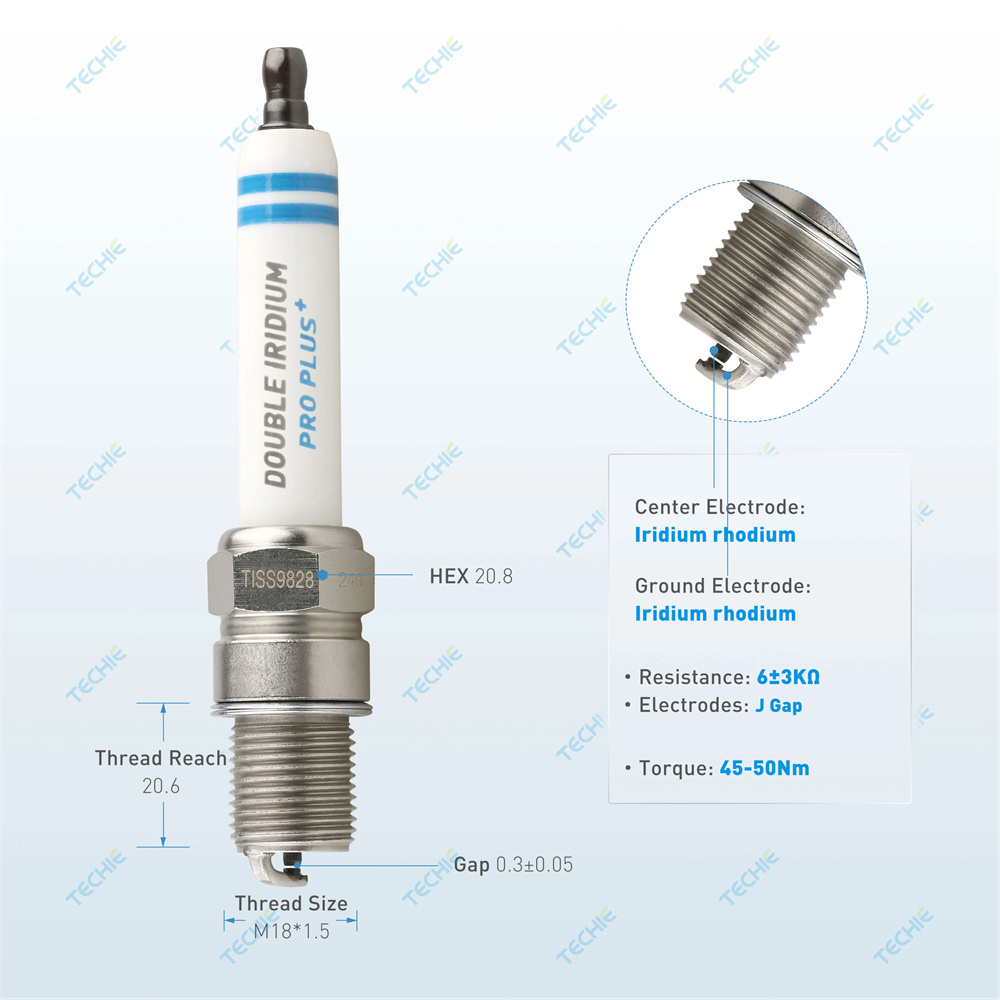

Code: |
TISS9828 |
|
Thread Diameter: |
M18*1.5 |
|
Thread Reach: |
20.5 mm |
|
Hex Size: |
20.8 mm |
|
Gap Size: |
0.25-0.3 mm |
|
Center Electrode: |
Iridium |
|
Ground Electrode: |
Iridium |
|
Resistance: |
3-9 kΩ |
|
Torque Value: |
45-50 Nm |
|
Service life: |
3000-5000 h |
|
Net weight: |
0.112 kg |
The TISS9828 spark plug is a high-performance solution tailored for demanding gas engine applications across multiple industries. Here are the comprehensive benefits:
1. Advanced Electrode Technology: Both the centre and ground electrodes are constructed with Iridium, a highly durable material known for its excellent conductivity and resistance to wear. This results in enhanced ignition efficiency and a longer service life, reducing replacement frequency.
2. Extensive Engine Compatibility: The TISS9828 is compatible with a wide range of gas engines, including MWM, Guascor, MAN, 2G Agenitor, Caterpillar, Jenbacher, Cummins, Perkins, Liebherr, Superior, Wärtsilä, and Waukesha models. This versatility makes it suitable for various industrial, commercial, and power generation applications.
3. Optimized Combustion Efficiency: With a precise gap size of 0.3mm, the TISS9828 ensures optimal flame propagation, resulting in improved fuel combustion, reduced emissions, and greater gas engine efficiency.
4. Robust Performance in Extreme Conditions: The 18mm thread diameter, 1.5mm thread reach, and 20.8mm hex size are designed for excellent thermal and mechanical stability. This ensures consistent performance under high-compression and high-temperature environments.
5. Resistance to Electrical Interference: With a resistance value of 6 kΩ, the TISS9828 minimizes electrical noise, ensuring reliable ignition performance and compatibility with modern electronic ignition systems.
6. Durability in Aggressive Environments: The dual Iridium electrodes provide superior resistance to corrosion and electrode erosion, making the spark plug suitable for gas engines operating in harsh conditions.
7. Simplified Installation and Maintenance: With a torque value of 45Nm, the TISS9828 allows for secure and accurate installation, reducing the risk of overtightening and ensuring reliable operation.
8. Comprehensive Cross-Referencing: The TISS9828 can replace numerous industry-standard spark plugs from brands like Champion, Beru, Stitt, Gateway, Altronic, Bosch, and Denso. This broad cross-referencing capability adds to its convenience and versatility.
9. Environmental Efficiency: The Iridium electrodes contribute to cleaner combustion, reducing CO2 emissions and promoting sustainable gas engine operations.
10. Trusted for High-Performance Applications: Designed to meet the demands of leading engine manufacturers, the TISS9828 delivers superior ignition performance, efficiency, and durability, making it a trusted choice for critical applications.
With its cutting-edge design, exceptional materials, and wide compatibility, the TISS9828 spark plug is the ideal choice for reliable and efficient engine performance in diverse operating conditions.
