TISS9810
Engine Applications
● Caterpillar- G3508 / G3512 / G3516 / G3516B / G3520 / G3520C / G3600 Series
● Cummins - QSV 81G / QSV 91G / QSK 19G / QSK 45G / QSK 60G / QSK 38G / QSK 50G
● Guascor - FG180 / FGLD180 / FG240 / FGLD240 / FGLD360 / FGLD480 / SFGLD480
● Perkins - 4000 Series
● Superior - 1706G2 / 1712G1 / 2400 G Series
● Waukesha - AT27GL Series - 13/16" Rch Heads / P48 / L36 / H24 / F18 / P9390GL
Target applications:
● Industrial stationary engines
● Power generation/CHP
● Fast Power & Resilience
● Natural Gas
● Furnace Gas
● Landfill Gas
● Sewage Gas
● Biogas
Jenbacher:
P611-1236099 123 6099
P611-1236100 123 6100
P611 -21668416 216 68416
P603 -1205634 120 5634
Federal Mogul / Beru: FV76WWCC / FV 76 WW CC / FV-76-WW-CC / 18GZ45 / 18 GZ 45 / 18-GZ-45
Denso: 518 - 1214569/ 5181214569/518 1214569

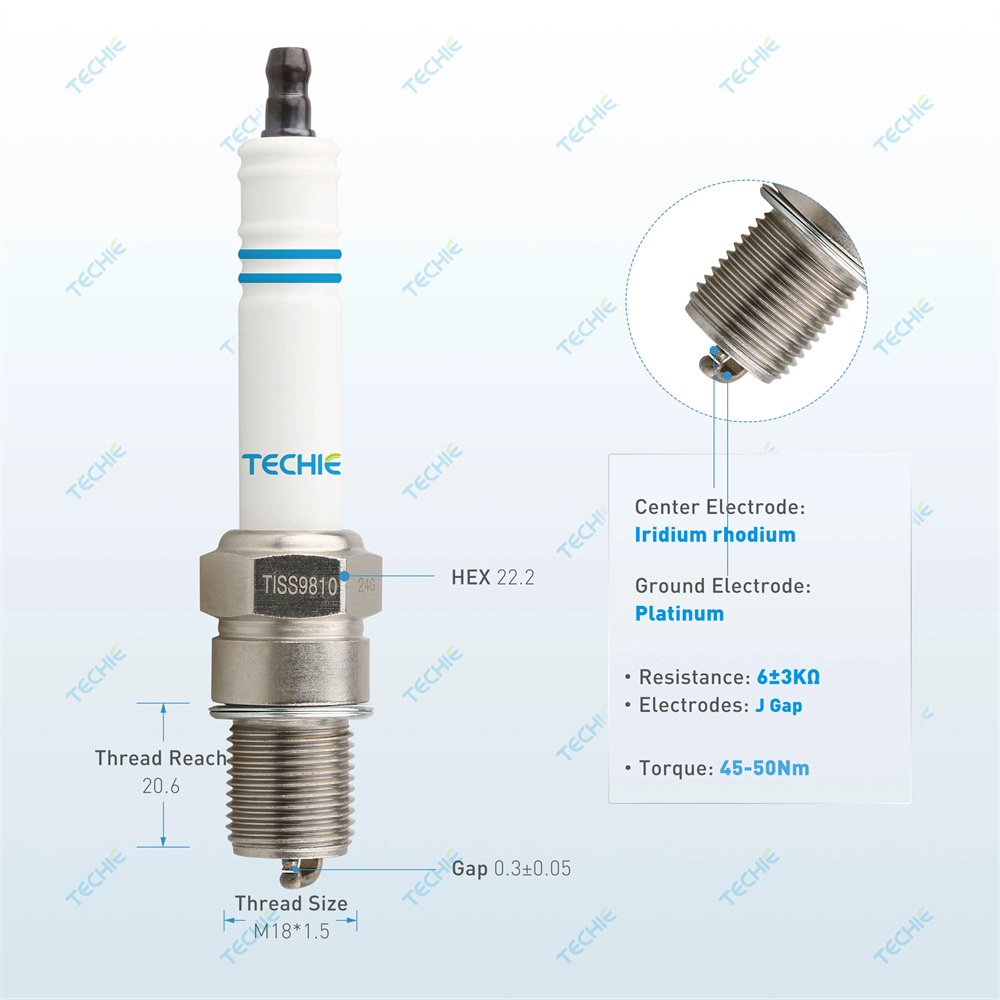

| Basic Technical Data | |
| Code: | TISS9810 |
| Thread Diameter. | M18*1.5 |
| Thread Reach: | 20.5 mm |
| Hex Size: | 22.2 mm |
| Gap Size: | 0.25-0.3 mm |
| Center Electrode: | Iridium |
| Ground Electrode: | Platinum |
| Resistance: | 3-9 KΩ |
| Torque Value: | 45-50 Nm |
| Service Life: | 2000-3000 h |
| Net Weight: | 0.112 kg |
The TISS9810 spark plug is designed to deliver exceptional performance, durability, and efficiency across a wide range of engine applications. Here are the detailed benefits:
1. Advanced Materials for Enhanced Performance: The TISS9810 features a robust Iridium centre electrode and a Platinum ground electrode. These materials ensure superior ignition, minimal wear, and long-lasting performance. The combination of Iridium and Platinum enhances spark precision, providing optimal combustion efficiency.
2. Compatibility with Diverse Engine Applications: This spark plug is engineered for use in a variety of gas engines, including models from Caterpillar (e.g., G3508, G3600 Series), Cummins (e.g., QSV 81G, QSK 60G), Guascor (e.g., FG180, FGLD360), Perkins (4000 Series), Superior (e.g., 1706G2, 2400 G Series), and Waukesha (e.g., AT27GL Series). Its versatility makes it an excellent choice for various industrial and power-generation engines.
3. Optimized Dimensions for Perfect Fit: With a thread diameter of 18mm, a thread reach of 1.5mm, and a hex size of 22.2mm, the TISS9810 offers precise fitment. The gap size of 0.35mm is meticulously designed to ensure consistent ignition and reliable performance.
4. High-Temperature and High-Load Resilience: The TISS9810 is built to withstand demanding operating conditions, including high temperatures and heavy loads. This makes it suitable for aggressive environments and continuous high-performance demands.
5. Low Maintenance and Long Service Life: The advanced materials and robust design contribute to extended service life, reducing the frequency of replacements and lowering maintenance costs. Its durability ensures reliable performance over extended periods, even under rigorous usage.
6. Exceptional Resistance and Torque: Manufactured with a torque value of 45Nm, the spark plug delivers superior tightening strength while maintaining structural integrity. Its resistance to erosion and thermal stress ensures dependable operation.
7. Precision Manufacturing: The TISS9810 is crafted with cutting-edge technology to ensure consistent quality. The exacting standards applied in its production result in a spark plug that meets the stringent requirements of modern gas engines.
8. Compatibility with Leading Brands: Cross-referencing compatibility includes top brands like Federal Mogul/Beru, Bosch, Caterpillar, Cummins, Denso, Waukesha, Gateway, Altronic, and Stitt. This wide cross-referencing range ensures it can replace multiple models without compromise.
9. Enhanced Combustion Efficiency: The precise gap size and superior materials result in efficient combustion, contributing to reduced emissions and better fuel economy. This feature supports environmental sustainability while improving your gas engine performance.
10. Lightweight Design: With a carefully optimized net weight, the TISS9810 is designed for ease of installation and operation without adding unnecessary strain to the engine components.
The TISS9810 spark plug sets a high standard in spark plug technology, offering unparalleled performance, reliability, and adaptability for industrial and power generation engine applications.
