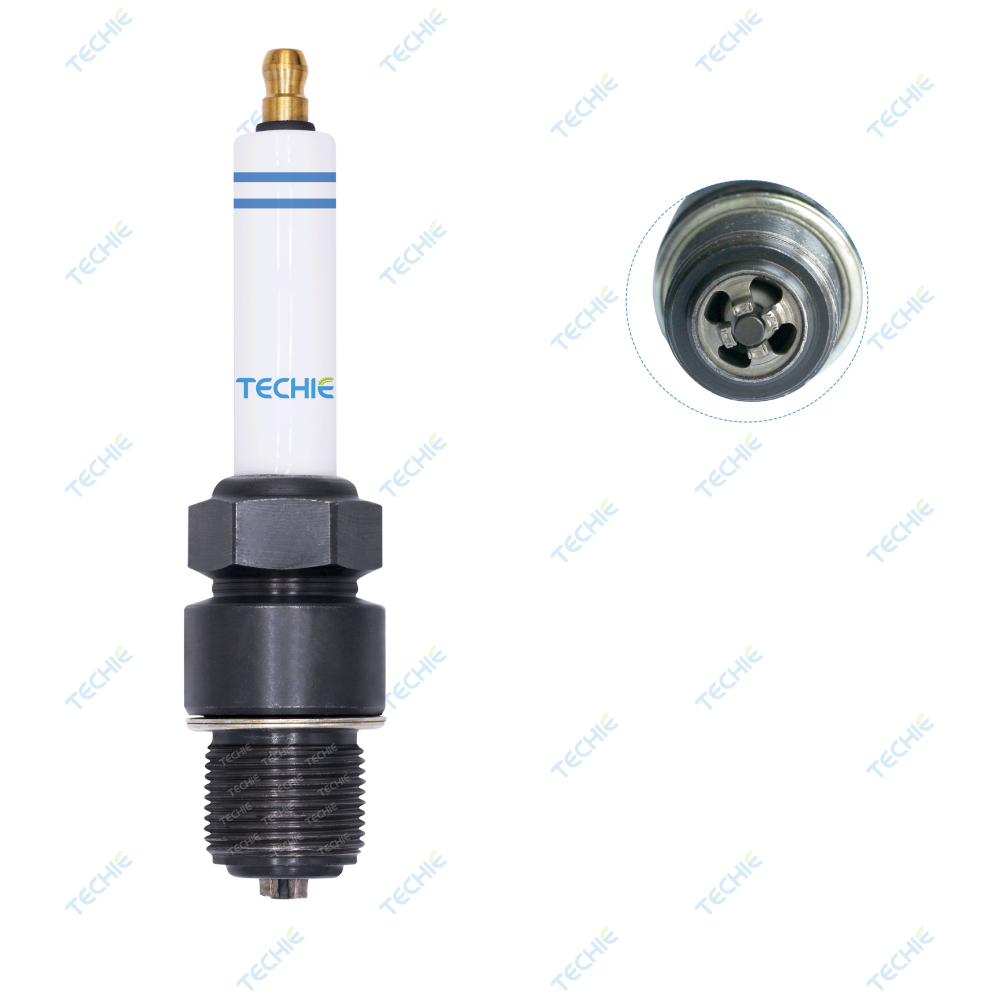

TISS9704
Engine Applications
Cooper gas engines and other applications
Target applications:
Industrial stationary engines
Power generation/CHP
Fast Power & Resilience
Natural Gas
Furnace Gas
Landfill Gas
Sewage Gas
Biogas
Why are Techie Spark Plugs the best choice for your engine?
Brand reference (Electrode design Ir/Ir)
STITT: R717
CHAMPION: RW78N
GPG: 9178112

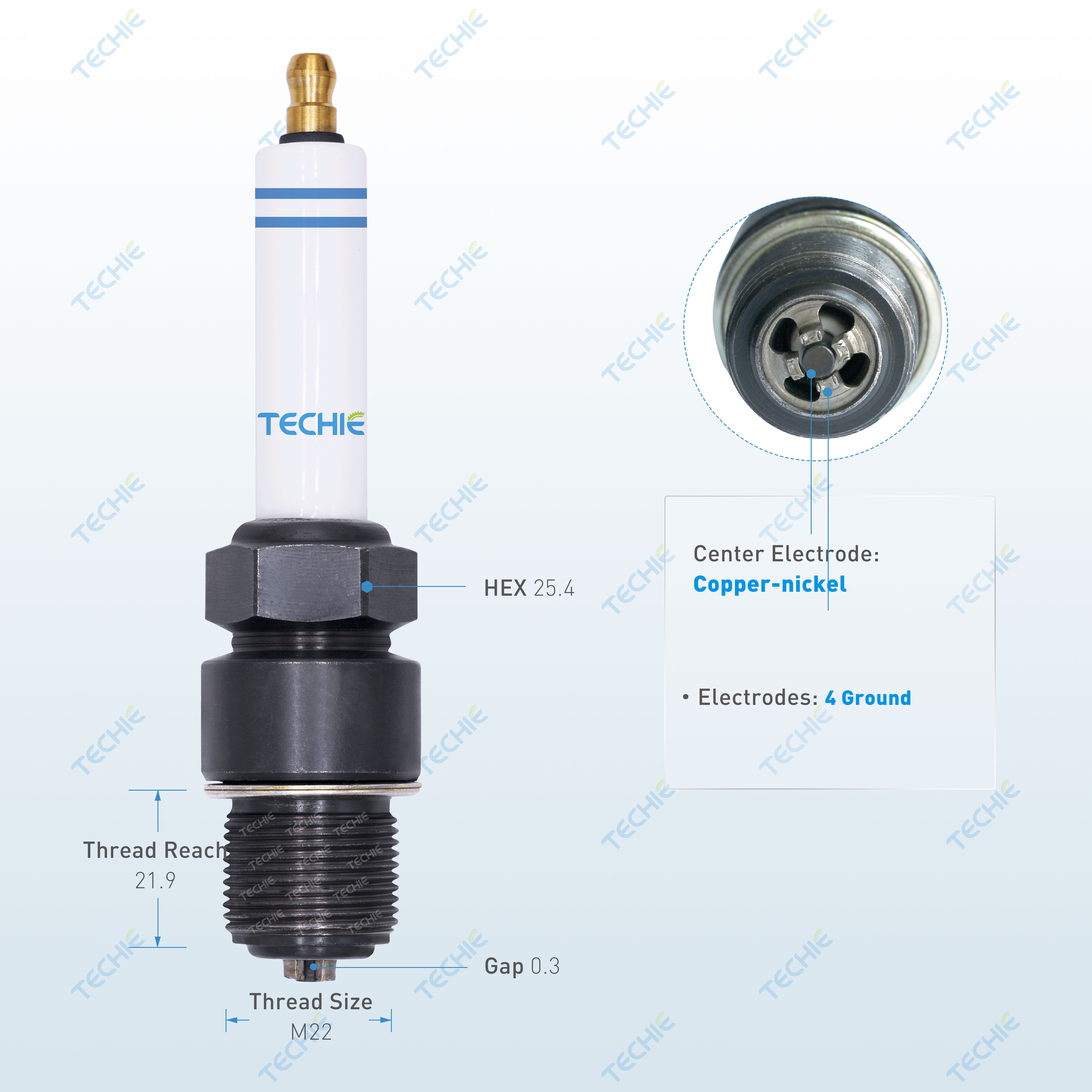

| Basic Technical Data | |
| Code: | TISS9704 |
| Thread Diameter: | 22.2 mm（7/8 in） |
| Thread Reach: | 21.9 mm (0.86 in) |
| Hex Size: | 23.8 mm (15/16 in) |
| Gap Size: | 0.25-0.35 mm (0.012 in) |
| Center Electrode: | Nickel |
| Ground Electrode: | Nickel(Four-ground) |
| Resistance: | 1.5-10 KΩ |
| Torque Value: | 45-50 Nm |
| Service Life: | |
| Net Weight: | 0.115 kg |
● Hot Lock shell seal delivers superior push out performance.
● Easier to regap. Less susceptible to bridging the gap.
● Long Life Platinum / Iridium-Platinum.
● Optimized gas combustion for high efficiency & long service life.
● Robust particle-resistant design.
● Designed for high-compression and aggressive environments.
● Manufactured for superior performance and long-lasting durability.
● Withstands today's high-temperature/high-load service environments.
● IRIDIUM technology for environmental benefits, Supports CO2 reduction.
● INSULATOR. Manufactured with high-grade alumina powder for exceptional dielectric strength and thermal conductivity at high temperatures.
● 360 ºLASER WELDING. State of the art manufacturing technology
● Vital to Iridium center electrode quality.
● Low voltage for great ignition reliability & better flame front propagation and high erosion resistance.
