TISS9855

TECHIE long life prechamber spark plug for CAT 3500 series. Replaces GPG 1177PC

    Contact us
    Applications
    Cross Reference
    Technical Data
    Benefits

     Engine Applications

    CAT / CATERPILLAR: G3512E、G3516B、G3516C、G3516E、G3520C、G3520E


    Target applications:

    Industrial stationary engines
    Power generation/CHP
    Natural Gas
    Furnace Gas
    Landfill Gas
    Sewage Gas
    Biogas

    Why are Techie Spark Plugs the best choice for your engine?

    STRICT QUALITY
    Developed by our engine experts, with continuous feedback from our customers—our high-quality spark plug portfolio meets our strict standards.

    We run each and every spark plug through a rigorous evaluation during the design process. Our expertise shows in our delivery of several hundred thousand spark plugs every year.

    COST REDUCTION
    Due to a longer lifetime and less risk of unplanned downtime or repairs. Higher cost-efficiency compared with the original spark plug.

    FAST DELIVERY
    TECHIE boasts a fully stocked inventory and a robust network, enabling us to ship products immediately after payment and deliver them anywhere in the world within ten days.

    COMPREHENSIVE RANGE
    TECHIE offers custom-made spark plugs for virtually any gas genset worldwide, with our range covering over 95% of all gas gensets globally.

    CAT/ MWM/ DEUTZ:
    30800 199-9012 284-8313 144-2588 2465-5123

    GPG: 1177PC

    BERU: 18 VGZ 1-77

    FEDERAL MOGUL/TENNECO: FB95WPV

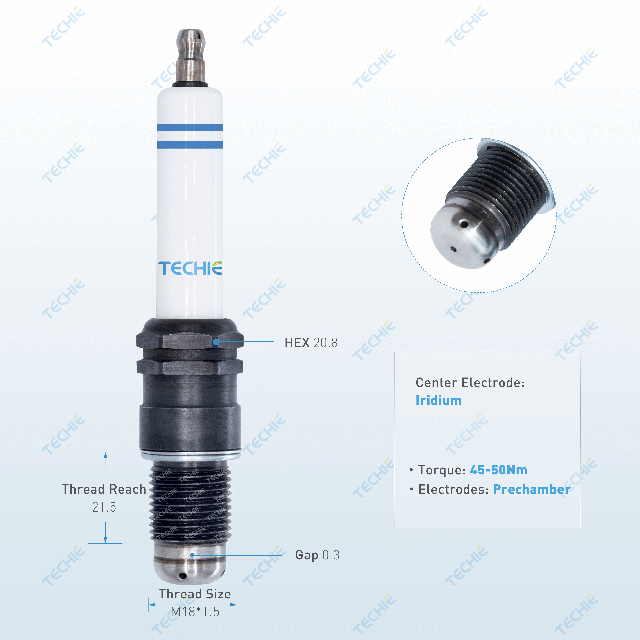

    3.Basic Technical Data
    Code: TISS9855
    Thread Diameter: 18 mm
    Thread Reach: 21.5 mm
    Hex Size: 20.8 mm
    Gap Size: 0.3 mm
    Center Electrode: Iridium
    Ground Electrode:
    Resistance:
    Torque Value:
    Service life:
    Net weight:

    ● Hot Lock shell seal delivers superior push out performance.

    ● Easier to regap. Less susceptible to bridging the gap.

    ● Long Life Platinum / Iridium-Platinum.

    ● Optimized gas combustion for high efficiency & long service life.

    ● Robust particle-resistant design.

    ● Designed for high-compression and aggressive environments.

    ● Manufactured for superior performance and long-lasting durability.

    ● Withstands today's high-temperature/high-load service environments.

    ● IRIDIUM technology for environmental benefits, Supports CO2 reduction.

    ● INSULATOR. Manufactured with high-grade alumina powder for exceptional dielectric strength and thermal conductivity at high temperatures.

    ● 360 ºLASER WELDING. State of the art manufacturing technology

    ● Vital to Iridium center electrode quality.

    ● Thin walled copper core center electrode for outstanding heat dissipation and extended plug life.

    ● low voltage for great ignition reliability & better flame front propagation and high erosion resistance.
